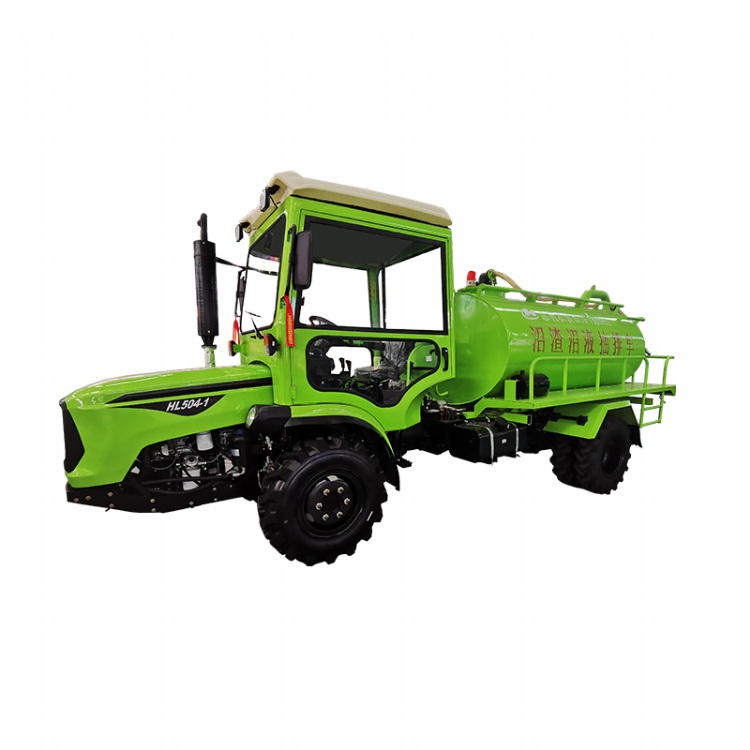

50HP hilly and mountainous wheeled tractor equipped with extraction function module
產品型號:2
產品分類:自動化設備/產業機械 / 其他產業機械 / 農業機械
產品特色
50HP hilly and mountainous wheeled tractor equipped with extraction function module
產品規格
It is suitable for absorbing and discharging sewage, feces, biogas residue liquid, etc. in rural areas. At the same time, it is responsible for transportation and spraying operations, and is suitable for the majority of biogas tank users, sanitation sewage treatment and other environmental operations.
hilly and mountainous wheeled tractor Features: In the modular concept, this car is the result of a combination of long-wheelbase platform modules and power modules. When necessary, the long-wheelbase platform module can be switched to a three-point suspension module to form a standard tractor, which is the Shanniu series.
ITEM |
Kw/hp |
STANDARD CONFIGURATION |
Engjnerated power |
r/min |
36.5/50 |
Engine ratedspeed |
/ |
2400 |
Driving type |
/ |
Four-wheel drive/ Rear drive |
Steering |
mm |
Hull hydraulic articulated |
Overall size (LxWxH) |
mm |
5900x2100x2500 |
Wheelbase |
mm |
2950 |
Wheeltrack (front/back) |
mm |
1250/1250 |
Min.ground clearance |
mm |
230 |
Min.turning radius |
mm |
5150 |
Forward speed range |
km/h |
2.4-39.21 |
Tires type |
/ |
8.25-16 |
Max slope |
% |
36.4(≈20°) |
EXTRACTION DEVICE |
|
|
Overall size (LxWxH) |
mm |
5950x2100x2500 |
Rated volume |
m³ |
35 |
Suction flow |
m³/min |
≥0.4 |
pipe diameter |
mm |
100 |
Suctionlength |
m |
≥30 |
Suction Deepth |
m |
≥4 |
