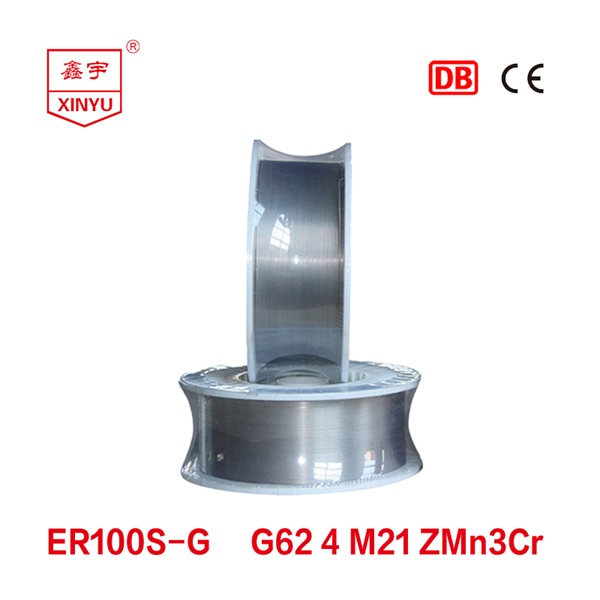

ER100S-G / G62 4 M21 ZMn3Cr Non-copper-coated welding wire Gas Shielded Welding Wire
產品型號：ER100S-G
產品特色
With the mixed shielding gas,XINYU Gas Shielded Welding Wire can be used to welding the important low alloy structures, and widely used in the welding of scraper chain and hydraulic supports in mining machinery
產品規格
|
Specification |
ISO |
G62 4 M21 ZMn3Cr |
|
AWS |
ER100S-G |
|
|
GB |
ER69-G |
|
|
Shieding Gas |
80%Ar+ 20%CO2 |
|
Product Description
Characteristics：
(1) This product is the 700MPa grade high strength steel wire, it has very good mechanical properties.
(2) With the mixed shielding gas,XINYU Gas Shielded Welding Wire can be used to welding the important low alloy structures, and widely used in the welding of scraper chain and hydraulic supports in mining machinery
Precautions：
1. Pay attention to the gas purity and mixture ratio.
2. Keep the gas flow rate between 15 ~ 25 L / Min.
3. The extension length keep between 15 to 20mm
4. Clear the oil, rust, moisture, dust and other debris of the welded parts.
5. Keep the welding hood clean and unobstructed.
One chemical composition of the weld metal sample (wt%)
（Shielding Gas:80%Ar+20%CO2）
|
C |
Si |
Mn |
P |
S |
Else |
|
0.08 |
0.60 |
1.45 |
0.010 |
0.005 |
-- |
One mechanical properties of the weld metal sample
（Shielding Gas:80%Ar+20%CO2）
|
Tensild Strength |
Yield Strength |
Elongation |
Impact Energy Value |
|
|
℃ |
J |
|||
|
750 |
655 |
23 |
-20 |
94 |
The applicable current range and specifications of the product (DC+):
|
Dia (mm) |
0.8 |
0.9 |
1.0 |
1.2 |
1.4 |
1.6 |
|
|
Current Range |
Flat welding |
50 ~ 180 |
50 ~ 200 |
50 ~ 220 |
80 ~ 350 |
100 ~ 470 |
200 ~ 500 |
|
Vertical up welding |
50 ~ 100 |
50 ~ 140 |
50 ~ 140 |
50 ~ 140 |
100 ~ 180 |
— |
|
|
Overhead welding |
50 ~ 100 |
50 ~ 120 |
50 ~ 120 |
50 ~ 160 |
— |
— |
|
|
Vertical down welding |
50 ~ 100 |
50 ~ 200 |
— |
— |
— |
— |
|
