產品型號：Consumer Electronics Laser Welding Machine

產品分類：零組件配件 / 其他 / 其他

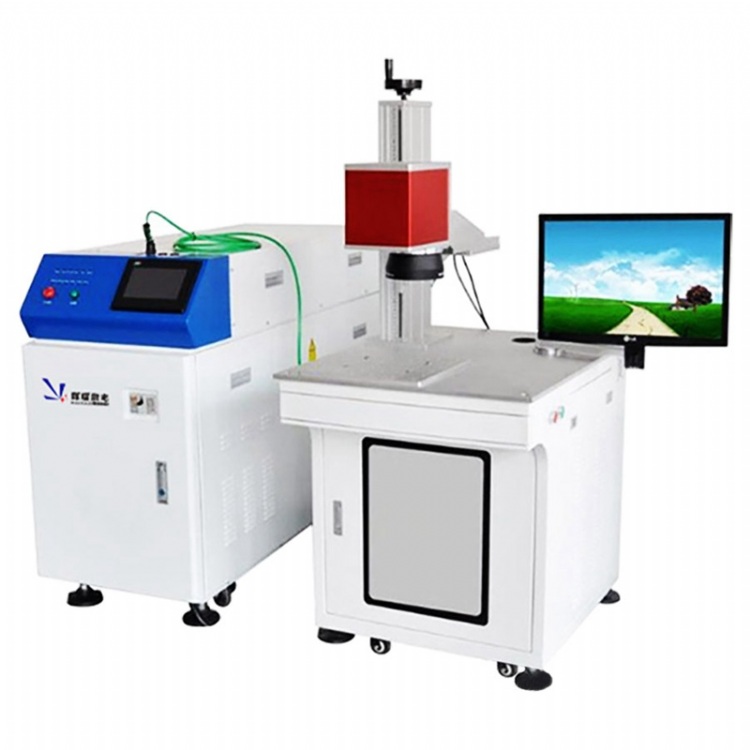

Consumer Electronics Laser Welding Machine

Model	HY-3000w
Laser source	3000w
Name	Hot sale good quality Consumer Electronics laser welding machine
XYZ Travel	Customizable
R Axis	Optional, 360° rotation
Position Accuracy	±0.02mm
Repeatability Accuracy	±0.01mm
Motion Source	Servo motor
Max Speed	500mm/s
Cooling Method	Water cooling
Electricity Demand	Customizable
Laser Wavelength	1080nm
Observation Syatem	CCD system
Gas Protection	Optional, Argon, Nitrogen
Environmental Requirements	No vibration, interference and ventilation
Welding Penetration	0.1~3.0mm

Application:

1.Hot sale good quality Consumer Electronics laser welding machine, Consumer electronics laser welding such as Smartphone Battery Glue Pasting, Smartphone Battery Pole Ear, Connector, Fan Motor Shell, Fingerprint Reader, etc.

2.Huiyao Consumer Electronics laser welding machine, Metal shell front spot welding, side seam welding, Spot size: 0.5mm±0.05mm, Degree of solder joint position: 0.1mm, Primary yield rate of the product ≥99%
