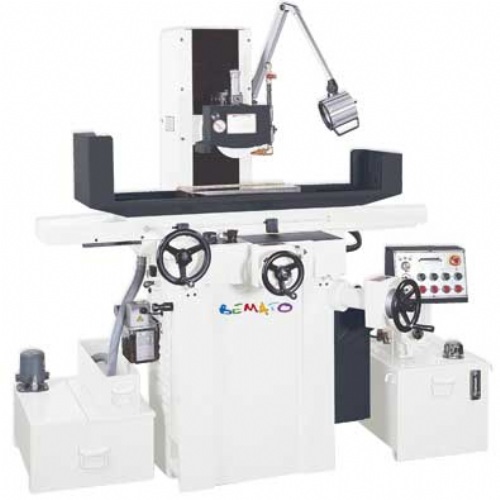

SURFACE GRINDER
產品型號：BMT 1545H/ 2045H/ 2550H
產品特色
FEATURES :
*Hydraulic longitudinal feed. Direction changed by mechanical device.
*Manual cross & vertical feed.
*Longitudinal: One flat & one Vee way
*Cross: 2 Vee ways
產品規格
*GRINDING SURFACE OF TABLE: 150 x 450mm(1545H) 200 x 450mm(2045H) 250 x 500mm(2550H)
*TABLE TRAVEL (Y x X): 185 x 500mm(1545H) 235 x 500mm(2045H) 270 x 550mm(2550H)
*SPINDLE CENTER TO TABLE: 450mm(1545H/ 2045H) 500mm(2550H)
*LONGITUDINAL FEED: 5~25 M/min
*CROSS FEED INCREMENT: Manual, 5 mm / Rev. 0.02 mm / Graduation
*VERTICAL FEED INCREMENT: Manual, 2 mm / Rev. 0.01 mm / Graduation
*RAPID VERTICAL FEED(OPTION): 60HZ-550 mm/min, 50 HZ-450 mm/minh
*WHEEL SPEEDS: 60 HZ-3500 RPM, 50 HZ-2900 RPM
*WHEEL DIMENSION
Standard: 180 x 13 x 31.75 mm
Option: 200 x 20 x 31.75 mm
*SPINDLE MOTOR: 2 HP
*HYDRAULIC PUMP MOTOR: 1HP
*N.W. / G.W.: 900/ 1100kgs(1545H) 950/ 1150kgs(2045H) 1350/ 1550kgs(2550H)
*PACKING DIMENSION(L x W x H):
2120x1460x1950mm(1545H)
2120x1460x1950mm(2045H)
2120x1460x2000mm(2550H)
