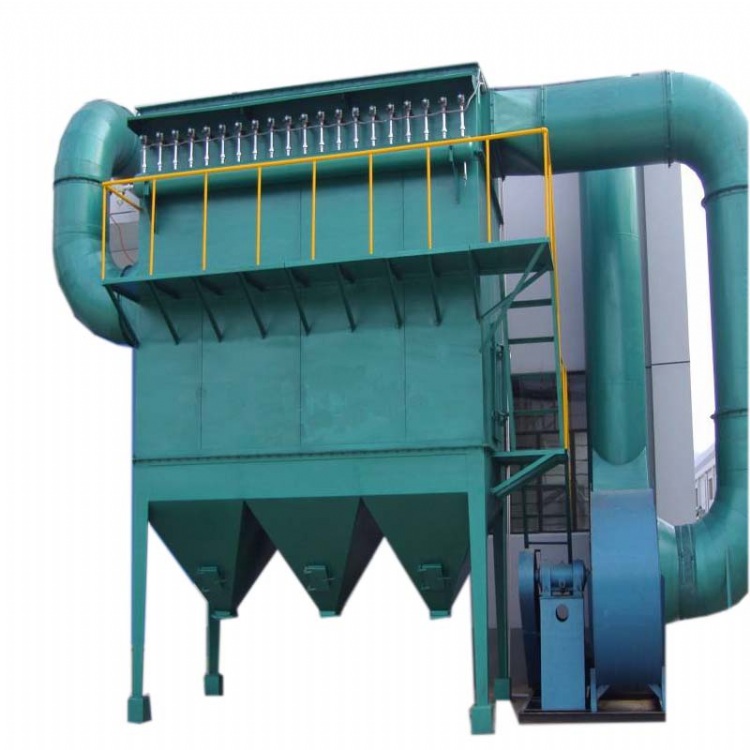

PPC type High efficiency pulse jet bag filter industrial dust collector  industrial dust collecting system  Bag Dust Collector manufacturer

Bag Dust Collector is a dry industrial filtering device. It is suitable for capturing tiny, dry, non-fibrous dust. The filter bag is made of textile filter cloth or non-woven felt, and the dusty gas can be filtered by the filtering effect of the fiber fabric to achieve the treatment effect of flue gas.

pulse jet bag filter Description

Baghouse bag filter industrial dust collector

Bag filter dust collector is widely used in cement, mineral processing, electronics, chemicals, food processing, metallurgy, casting, carbon materials, machining, timber building materials and other industries.

Working principle of industrial dust collector: Dust gas enters the middle and lower enclosures through the air inlet of the precipitator. The

dust and gas are separated through the filter of the filter bag. Dust is adsorbed on the surface of the filter bag, and clean air is discharged from the air outlet through the filter bag. Increasing the amount of dust deposited on the surface of the filter bag over time is increasing. According to the procedure set by the pulse blower, the pulse blow valve triggers on in sequence. Compressed air inside the air bag is instantly blown out from each hole of the injection pipe and sprayed into the corresponding filter bag via the venturi. The dust adsorbed on the surface of the filter bag then falls off into the hopper and is discharged through the discharge valve Directly into the warehouse.

Features of  Bag Dust Collector:

1. High efficiency≥99.5%

2. Low emission concentration ≤20um, but also ≤10um is possible after filtering according to practical situation

3. Low leakage rate

4. Material—carbon steel or stainless steel.

5. Simple Structure, easy maintenance

6. Suitable bags and bag cages fitted according to dust properties. Glass Fiber, needle felt, PTFE, p84., etc

7. The overhaul and bag replacement can be carried out for separate chamber under the condition that system blower and system run normally.

8. The whole set of equipment is controlled by PLC to realize automatic dust cleaning, dust removal, automatic temperature control and over temperature alarm

9. It is not sensitive to the characteristics of the dust, and it is not affected by dust and resistance.

INDUSTRIAL DUST COLLECTOR Technical Parameter

FAQ about Hebei Taizhe Machinery Equipment Trading Co., Ltd.:

1. Q: Are you a factory or trading company?

A: We own 1 factory and have 2 cooperated factories, hebei taizhe machinery trading Co., ltd. is a trading company.

We have the improvement teams from design, manufacture....to installation, commissioning and staff training

2. Q: Where is your factory located? How can I visit there?

A: Our factory is located in Shijiazhuang City, the capital of Hebei Province, 1.5 hours way by high-speed rail from beijing to shijiazhuang

It's near the airport and train station.

3. Q: How does your factory do regarding quality control?

A: We test our machine before shipping. Our factory has gained ISO9001:2008 authentication.

4. Q: How long is the warranty?

one year warranty and free cunsultaion during the period of use.

5. Q: how to pay for the product?

L/C, T/T and Western union is available.

6. Q: how to consult about dust collector?

you just need offer us following information: working situation? Dust or fume characteristic? Filter area? Inlet temperature? Wind velocity? etc... our experts will put forward feasible plan for you ASAP.

Warranty:

12months Quality warranty period (after put into operation formally).

Provide technical guide for dust collector forever.

After Quality Warranty period of dust collector, will provide the spare parts with cost price.

All the machines provided by our factory will be tested before ship.

Packaging & Shipping

We test Dust Collector before it is packaged and transported:

Main part and relative valves, instrument: composite material box packed, rain-proof.

Will be marked on per part with the regulations on goods.

Steel parts will be loaded into container directly.

TZ-Pulse Jet Bag Filter is one of our main product, the whole set of dry industrial filtering device is controlled by PLC to realize automatic dust cleaning, dust removal, automatic temperature control and over temperature alarm.
