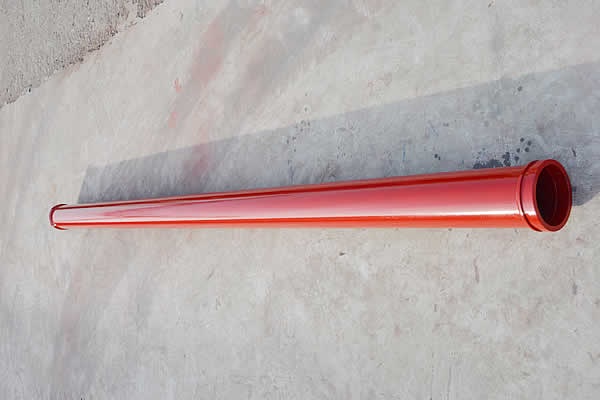

Concrete Pump Pipe
產品型號：01
產品分類：自動化設備/產業機械 / 鋼管製造機 / 彎管機
產品特色
Our main products are : ST52 Concrete pump pipe, Hardened concrete pump pipe and Twin wall concrete pump.
產品規格
Jiuzhou Pump Pipe Manufacturing is specialized in concrete pump pipe.
Our main products are : ST52 Concrete pump pipe, Hardened concrete pump pipe and Twin wall concrete pump.
| Name | Structure | Weight | Thickness | Life time | Working Press |
| Normal Pipe | Single Layer | 45kg | 4.5mm | 6000-8000 | 85bar |
| Economical Pipe | Single Layer | 45kg | 4.5mm | 10000-12000 | 99bar |
| Developing Pipe | Single Layer | 45kg | 4.5mm | 15000-18000 | 140bar |
| Hard Pipe | Single Layer | 48kg | 4.8mm | 20000-25000 | 110bar |
| Diamond Pipe | Single Layer | 48kg | 4.8mm | 25000-35000 | 110bar |
| NM550 Twin wall Pipe | Double Layer | 48kg | 4.8mm | 50000-60000 | 65bar |
| NM550-1 Twin wall Pipe | Double Layer | 48kg | 4.8mm | 60000-80000 | 60bar |
| NM600 Twin wall Pipe | Double Layer | 48kg | 4.8mm | 80000-100000 | 40bar |
| NM600-1 Twin wall Pipe | Double Layer | 68kg | 7mm | 120000-150000 | 80bar |
