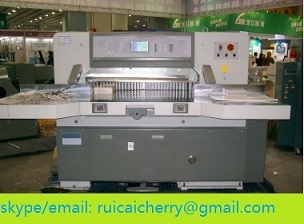

Inductrial paper cutter paper guillotine
產品型號：QZK1300M5
產品分類：包裝印刷暨食品及製藥機械 / 印刷機械 / 印刷品貼合機
產品特色
Ruicai products include paper cutting machine, creasing machine, perfect binding machine, roll laminator, hardcover making machine, UV coating machine, Card Cutter, Album making machine, gluing machine, corner rounding machine, hot stamping machine, photobook making machine,groove pressing machine, flatting machine, book stitching machine, paper sheeting machine, three sides trimmer, creasing and die cutting machine, die cutting and hot stamping machine, drilling machine, office equipment and so on. We can provide one-stop solution to our customers. （ ruicaicherryATgmail(dot)com ）
Our faith is "Honesty based quality first and service oriented". Welcome you cooperate with RUICAI Group!
Model QZK1300M5
Max Cutting Size(L*W) 1300*1300mm
Max Cutting Thickness 120mm
Front Table Length 700mm
Main Motor Power 4000W
Max Clamping Power 5000Dan
Cutting Speed 42 times/min
Machine Weight 3500kgs
Machine Size 2.7*2.9*1.6m
Packing Size: 2.85*1.5*1.9m
Introduction
1.High quality casting part made by resin bonded sand way.
2.Chrome-plated slot-less working table installed with double imported linear guide and air cushion.
3.With ball screw.
4.Mechanical assistance device for knife replacement.
5.Overload protection safety device.
6.Infrared photoelectric protection device.
7.Knife cutting only operated by pressing two buttons at same time.
8.Fluorescent lamp and cutting line indicator.
9.Ejective device for knife bar.
10.Use imported components in Hydraulic system.
11.Use imported electronic units like Siemens, TOSHIBA, ORMON, LG, Schneider and Fotek.
12.Omron PLC control.
13.Driven by LG converter, the maximum speed of the back gauge is 10 m/min.
14.Use imported Mechanic components like NSK Bearing.
15.Single Hydraulic.
16.Adjust hydraulic pressure manually and the paper can be pressed twice by pressure-increased system.
The description of computer
1. Four language choice (Chinese ,English, Spanish and Portuguese)
2.Units could be toggled between Metric & Imperial
3.M5’s back gauge has the position resolution of 0.1mm, closed-loop controller, electrical position error of 0.1 mm and no need for position error adjustment.
4.M5 has the storage capability of 90 cutting programs. For each program, the machine will stop cutting until the paper pusher arrive at the middle limited position. After detach the false clamp and switch to program status, the machine will stop cutting until the paper pusher arrive at the front limited position. During this process, there is no limited on cutting capacity).
5.The malfunction diagnose and misoperation preserve functions of M5 is strong.
6.Auto operation function.
7.8 inch LCD
