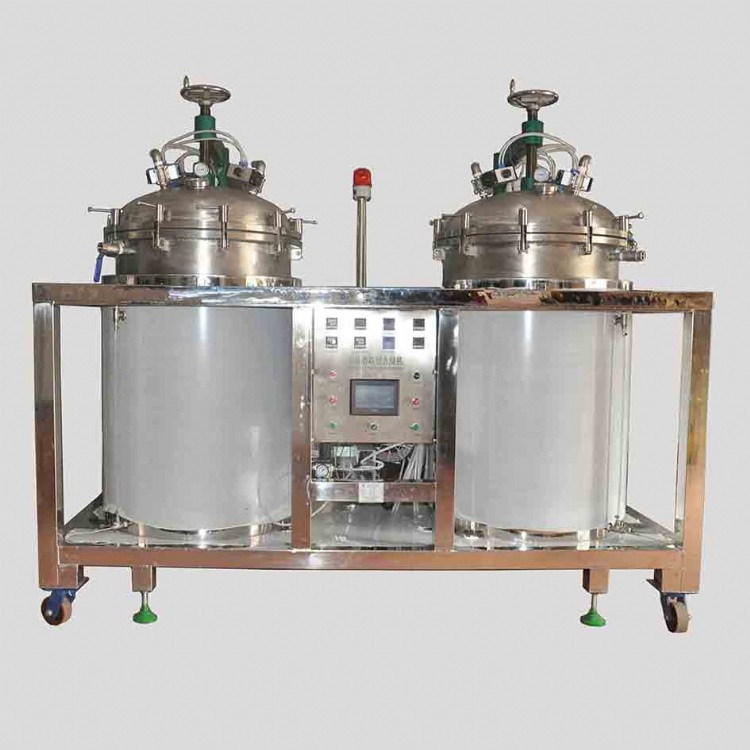

Fully automatic efficient vaccum impregnation machine
產品型號：JD-800
產品分類：自動化設備/產業機械 / 其他產業機械 / 清洗設備
產品特色
JD-G500 140L 200L 500*500 1.2Mpa 8KW 380V 2100*760*1600
JD-G600 310L 450L 600*500 1.2Mpa 8KW 380V 2100*850*2000
JD-G800 700L 1000L 800*500 1.2Mpa 24KW 380V 2750*1200*2600
JD-G1000 830L 1150L 930*500 1.2Mpa 27KW 380V 3820*1460*2600
Function proceed description :
1.vacuum pumping 2. Automatic liquid feeding 3. automatic compressing ,
4 constant pressure 5 automatic pressure releasing , 6. Automatic liquid return
7. automatic fluid exhaustion 8 automatic double liquid level detection ,9 automatic liquid complement 10.automatic constant temperature , 11 alarm for excess temperature 12 alarm for working completion
MAJOR ADVANTAGES OF OUR AUTOMATIC EFFICIENT IMPREGNATION MACHINE
1.quolity improvement
A. There is no need to compress wiht compressed air during the whole impregnation process , thus decreasing the second pollution of the moisture in compressed air to electorlyte and element .
B. Thorough impregnation : the electorlyte can fully penetrate into the erosion holes of the positive oil , increase the capacity rate .
C. Good product consistence ; digital automatic constant pressure function is employed in a equal pressure wihtin the cylinder and high liquid pressure .
D. after impregnating , the electorlyte uses high accurate filtration to filter the small foil ash and paper scraps .
2. High impregnation efficiency
A. It uses liquid pressure of 1Mpa of electorlyte liquid . The full automatic efficient impregnating machine is three to five times more efficient than the present automatic impregnating machine. It has outstanding effect on electrolytic capacitor of medium and high voltage , slim and long type , large diameter lead type , horn type and bolt type .
3. improvement of safety performance
A. Liquid pressure impregnating is used in the impregnating cylinder. Because no compressed air is used to compress in the cylinder. It is no pressure capacitor and does not require monitoring . The instant release explosion of the compressed are is eliminate completely., so is the potential danger to person and property
B. The heating layer is completely separated from the impregnating cylinder, fully avoiding the oil or water of the heating layer leaks into the impregnating cylinder , which may resuit in the serious damage of the electorlyte and element.
C. Cylinder is welded by automatic Argon welder which considerably improve the solid weld, consistent quality and good appearance.
D. Base of cylinder use self-developed mold-made arc type flat base, improving airtightness , solidity and service life of impregnating cylinder.
E. Compared wiht fully automatic impregnating machine , it has additional funtions of alarm for excess temperature, automatic liquid complement , alarm for work completion and parameter encryption..
