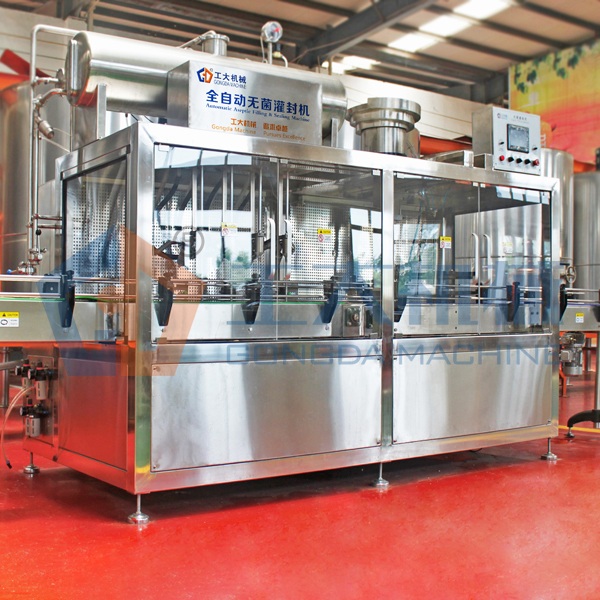

Aseptic filling machine
產品型號：Aseptic filling machine
產品分類：包裝印刷暨食品及製藥機械 / 包裝機械 / 粉粒類充填及包裝機
產品特色
This machine is specially designed for 5L pop cans.
The control unit adopts Siemens small PLC for controlling the whole process.
This machine can be used to finish aseptic filling in condition of sterilize by membrane filter machine and ultraviolet lamp.
The machine fills the beer barrel in the way of vacuum-pumping and CO2 pressure preparation.
產品規格
Size of plate form: 960mm*800mm
Height of plate form: 800mm
Size of the machine: 1000mm*1300mm*1530mm
Production capacity: 50-70keg per hour
Pressure of the beer: 0.2-0.3Mpa
Pressure of the air: 0.6-0.7 Mpa
Pressure of the CO2: 0.2-0.3 Mpa
Pressure of the cylinder: 0.3-0.5 Mpa
Voltage of the electricity: AC220V 50HZ
