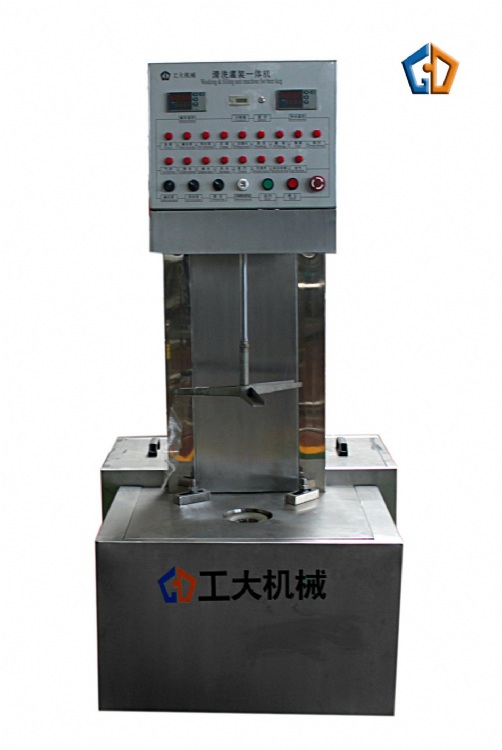

Beer keg washing filling unity machine
產品型號：Keg Washing Filling Unity Machine
產品分類：包裝印刷暨食品及製藥機械 / 包裝機械 / 液體類充填及包裝機
產品特色
1. The process of washing, filling is finished automatically.
2. Filling volume is controlled by high-speed positioning filling skill system
3. The temperature of hot water and lye is controlled automatically.
4. Available to connect more than one machine together to reduce the investment.
5. Auto washing of the beer pipeline CIP
6. Figure statistics and display function
7. Check keg spear automatically, make sure the washing quality and filling volume.
8. Suitable for different beer keg sizes.
產品規格
Working Procedures:
Location - scavenge wine remains - mixed hot mater washing – blow - sterilize by lye – recycle - hot water washing – recycle - sterilize by steam - sterile water washing – recycle - preparation of CO2 pressure - filling
Equipment fittings:
Siemens LOGO PLC
Stainless steel control crow valve
Pneumatical component of Taiwan Yadake
Main Parameter:
Filling accuracy: 0.5%
Capacity: 30-40bottles/hour
Compressed air: pressure: >0.4Mpa
Wince resource pressure: 0.25~0.4MPa
Power: AC220V
Voltage: DC24V
Equipment size: 900mm x1530mm x1950mm
