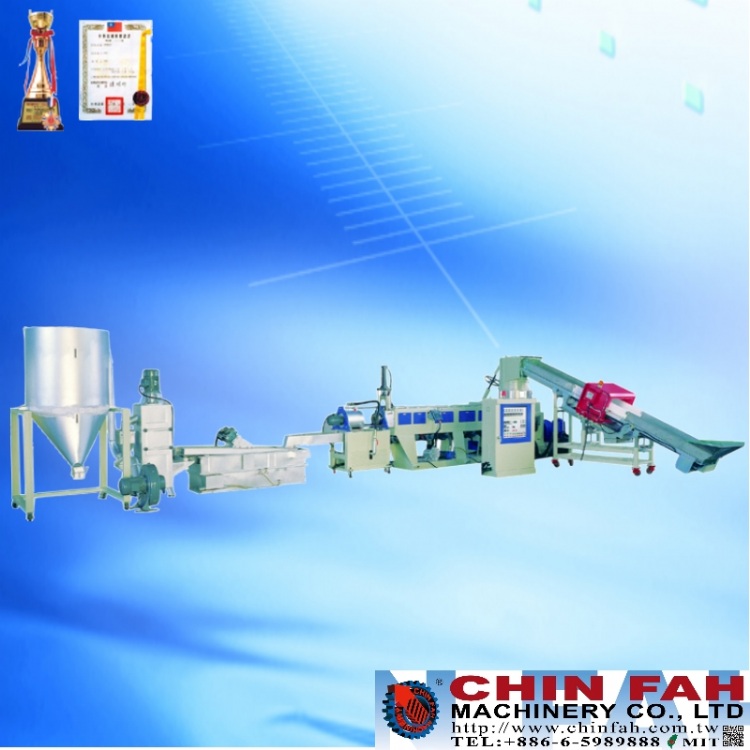

三機一體PP, PE塑膠薄膜回收機
產品型號：YF-HNV-135S
產品分類：塑橡膠產業機械 / 塑膠機械 / 塑膠廢料再生處理製粒機
產品特色
1. 3-in-1 design: combine with conveyor & shredding drum+extruder+pelletizer into one recycling machine.
2. Material to be used: HDPE/LDPE/LLDPE/PP.
3. Perfect for clean or washed film waste, with high quality bean type pellets.
4. Die face cutting type.
5. Easy to operate, save time and labor cost.
產品規格
https://www.youtube.com/watch?v=nI-BkXfg9WI
Product Description
- 1. 3-in-1 design: combine with conveyor & shredding drum+extruder+pelletizer into one recycling machine.
- Material to be used: HDPE/LDPE/LLDPE/PP.
- Perfect for clean or washed film waste, with high quality bean type pellets.
- Die face cutting type.
- Easy to operate, save time and labor cost.
Product Specifications
- The waste film is automatically fed by shredding motor amperage, save the labor cost.
- Special shredding drum design: energy and labor cost saving of up to 40 percent as compared to traditional machine systems.
- Chop up, homogenizing, pre-heating, moisture density functions.
- Increase output is obtained by feeding the material to the extruder screw which in turn will generate the required energy.
- Water cooling circulation, vibration screen and catch tank: Pellets are selected by vibration motor with stainless screen.
Optional Euipment:
1. Metal Detactor
2. Storage Tank
3. Vacuum Pump
4. Seperator
| Model | YF-HNV-85 | YF-HNV-100 | YF-HNV-120 | YF-HNV-135 |
| Suitable Resin | LDPE/HDPE/PP | |||
| Max. Output | 150-200 KG/HR | 200-350 KG/HR | 250-400 KG/HR | 300-450 KG/HR |
| Main Product | Bean Type of Pellets | |||
| Cutting Type | Die Face Cutting | |||
| Screw Diameter | 85mm | 100mm | 120mm | 135mm |
All Specification and pictures above are for reference only.
If you need more information, please feel free to contact us.
E-mail: [email protected]
