单片锯

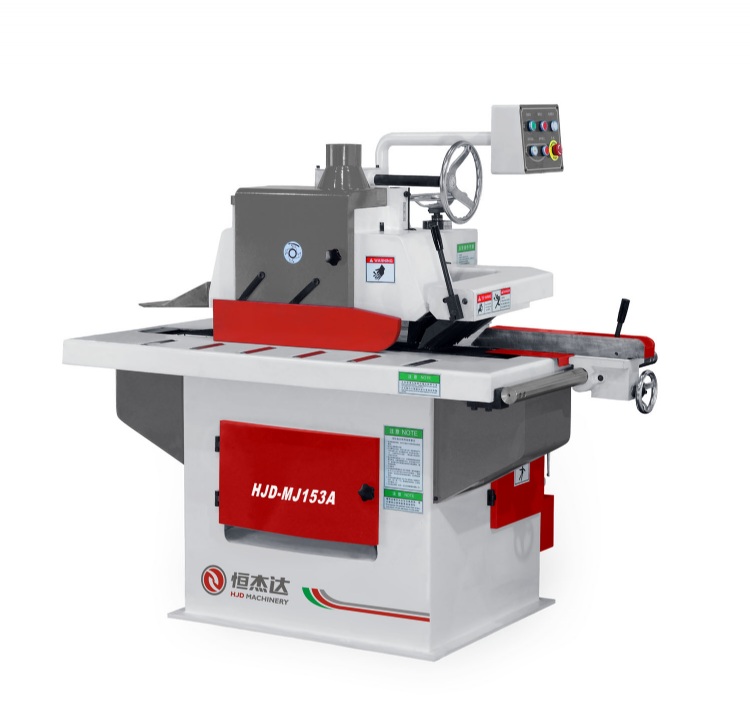

產品型號：HJD-MJ153A/MJ154A
產品特色
1. The track-type feeding chains wear well and boast high conveying and planning accuracy.
2. The new clamper makes the feeding more stable.
3. The super-long guide rail guarantees the straightness of long timber.
4. The sealed electric cabinet prevents the dust and any accidents thereof.
5. The three-layer rebounder makes the timber hard to rebound and ensures human safety.
6. It can make the notches on the soft, hard wood smooth and the size of the workpiece precise for adopting frequency conversion stepless speed regulation.
產品規格
|
saw blade diameter |
φ305mm |
|
max.working thickness |
85mm |
|
cutting width |
360mm |
|
spindle rotation speed |
3000r/min |
|
spindle diameter |
φ25.4 |
|
feeding speed |
12-22m/min |
|
feeing motor power |
0.75kw |
|
main motor power |
7.5kw |
|
lubricate pump motor power |
|
|
total power |
|
|
working table size |
1300×715mm |
|
dimension |
1400×950×1400 |
|
net weight |
|
