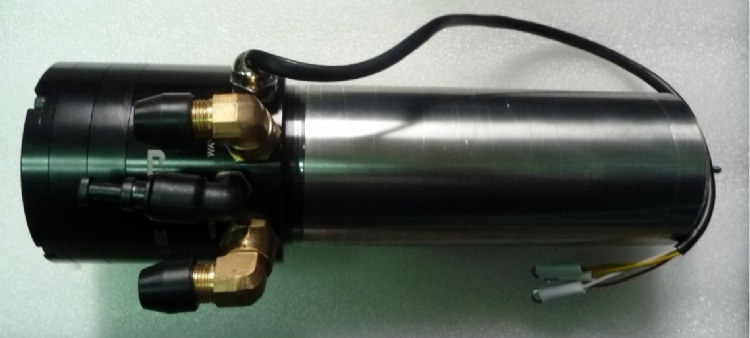

160K rpm PCB drilling spindle
產品型號：KL-160
產品分類：工具機產業機械 / 鑽床 / CNC鑽床，PC板加工用
產品特色
KLKJ air bearing spindle, with 160K rpm speed , suitable for PCB small hole drilling, high rotational speed, consistent performance & long life.
產品規格
| SPEED | 160,000rpm/min |
| FREQUENCY | 2667HZ |
| TORQUE | ≧550g |
| RUNOUT | ≦8um |
| MOTOR CURRENT | 3.5A(max) |
| AIR PRESSURE | 6KG∼8KG |
