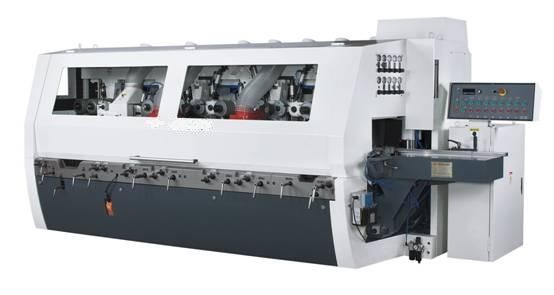

5-Spindle Moulder Machine
產品型號：SKG-230H/5
產品分類：木工產業機械 / 鉋木/成型機 / 四面成型鉋木機
產品特色
Technical data :
Working width (with tool cutting circle 125mm) = 15-230mm
Working height (with tool cutting circle 125mm) = 10-150mm
產品規格
1ST First horizontal bottom spindle
Motor = 20HP
Spindle diameter = 50mm
Spindle speed = 9000rpm/Min
Tool cutting circle = 125-160mm
Setting range axial = 30mm
Out broad bearing device
Equip 150mm length spiral cutter block and index cutter
2ND First right vertical spindle
Motor = 15HP
Spindle diameter = 50mm
Spindle speed = 9000rpm/Min
Tool cutting circle = 125-180mm
Setting range axial = 50mm
Maximum profile cutting depth = 35mm
Table is adjustable to tool cutting circle.
Equip 100mm length spiral cutter block
3RD First left vertical spindle
Motor = 15HP
Spindle diameter = 50mm
Spindle speed = 9000rpm/Min
Tool cutting circle = 125-180mm
Setting range axial = 50mm
Maximum profile cutting depth = 45mm
Table is adjustable to tool cutting circle.
Equip 100mm length spiral cutter block
4TH First horizontal top spindle
Motor = 25HP
Spindle diameter = 50mm
Spindle speed = 9000rpm/Min
Tool cutting circle = 125-230mm
Setting range axial = 30mm
Maximum profile cutting depth = 45mm
Out broad bearing device
Equip 150mm length spiral cutter block
5TH Second horizontal bottom spindle
Motor = 20HP
Spindle diameter = 50mm
Spindle speed = 9000rpm/Min
Tool cutting circle = 125-230mm
Setting range axial = 30mm
Maximum profile cutting depth = 45mm
Out broad bearing device
Out feed table is adjustable
Equip 150mm length spiral cutter block.
