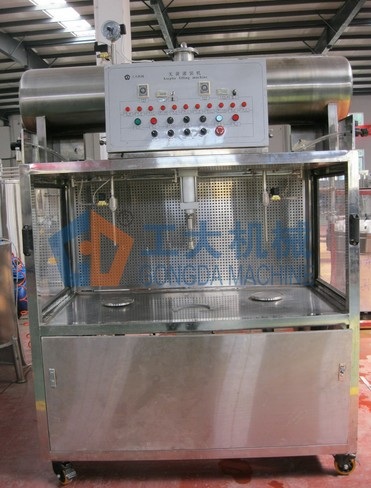

Aseptic Filling Machine
產品型號：2
產品分類：包裝印刷暨食品及製藥機械 / 食品及製藥機械 / 啤酒釀造工廠機器設備
產品特色
1. The main component:
The machine invludes frame, the elevtrical control system, solenoid pilot actuated value, pneumatic componets, membrane filter fan, ultravidet lamp, systems back to wine components.
2. Fatures:
This machine is specially designed for 5L pop cans.
The control unit adopts Siemens small PLC for controlling the whole process.
This machine can be used to finish aseptic filling in condition of sterilize by membrane filter machine and ultraviolet lamp.
The machine fills the beer barrel in the way of vacuum-pumping and CO2 pressure preparation.
3. Main technical parameter
Size of plate form: 960mm*800mm
Height of plate form: 800mm
Size of the machine: 1000mm*1300mm*1530mm
Production capacity: 50-70keg per hour
Pressure of the beer: 0.2-0.3Mpa
Pressure of the air: 0.6-0.7 Mpa
Pressure of the CO2: 0.2-0.3 Mpa
Pressure of the cylinder: 0.3-0.5 Mpa
Voltage of the electricity: AC220V 50HZ
