Keyway profile milling machine for lock industry



發佈日期：2021/8/4

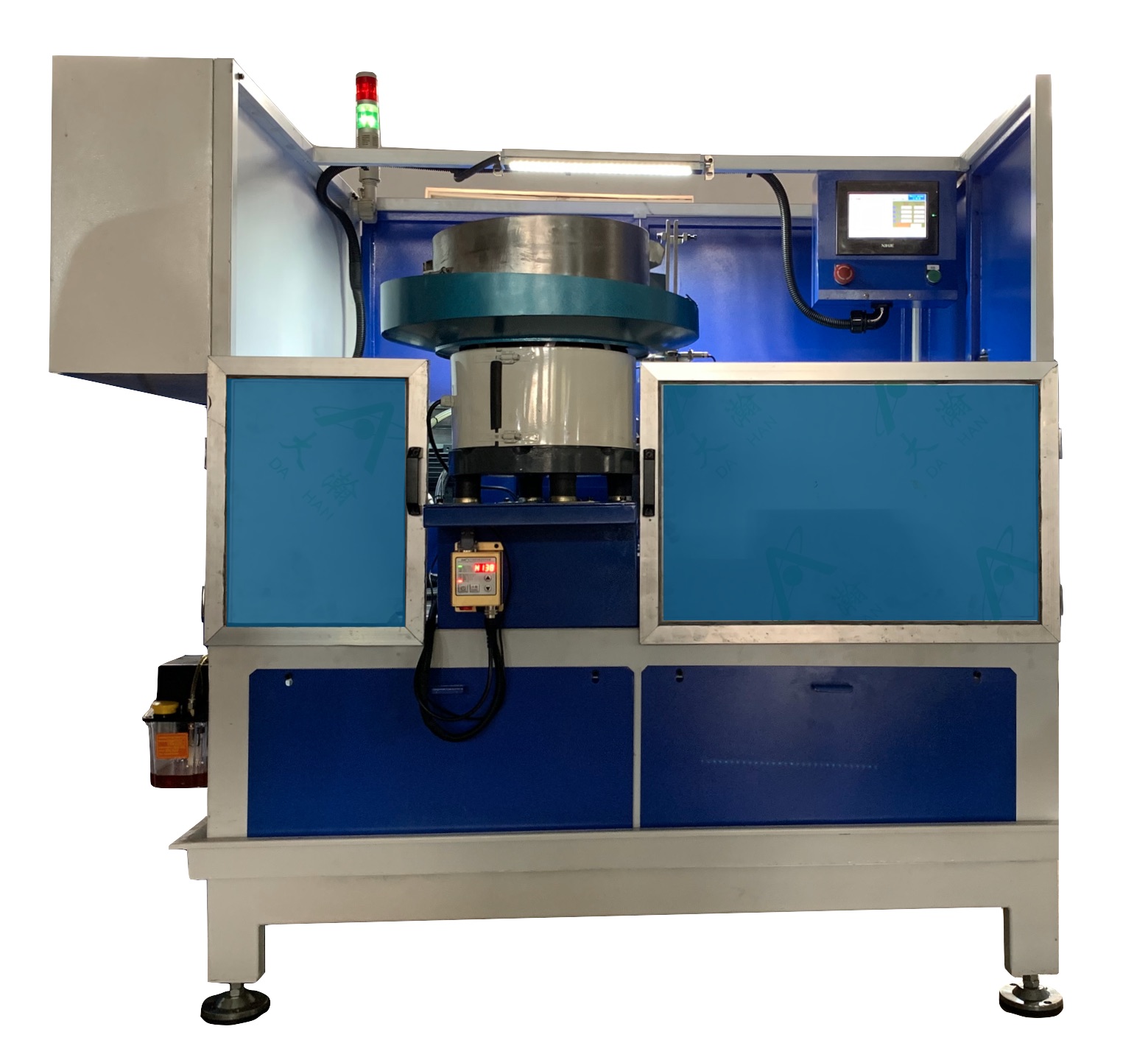

SKJZ22B key profile machines is a sevro-motor driven double-sides-milling machine, specially designed for processing the grooves of I-shaped-keys, S-shaped-keys and computer keys.

Features:
1/. Adopt the PLC control, touch screen display, easy program.
2/. VFD speed adjustable for more processing options.
3/. Easy operating. Automatic loading (with vibrating feeder), automatic milling, automatic unloading.
4/. Convenient adjustment for different sizes of keys
5/. High accuracy, +/-0.03mm.
6/. High efficiency.
7/. Application: I slot key, S slot key, computer key.
8/. Stock: X 30mm, Y 180mm, Z 30mm
9/. Option: Vibrating feeder

Spindle motor 1.5KW
Servo-motor 0.15KW x 3
Cooling pump: 0.4KW
Lubricating oil pump 0.1KW
Vibrating feeder 0.55KW(option)
Processing materials Copper, cast iron
Main spindle diameter ¢16mm
Size of the milling cutter according to key needs
Efficiency 8500-9000 pieces/ 8h
Dimension 1.6L*0.95W*1.66H
Weight 880Kg
Required compressed air 0.4-0.6 MPa
