AIR TECTURED MACHINE(HLK-B)
產品型號：HLK-B
產品分類：紡織染整成衣暨縫製機械 / 紡織染整機械 / 其他紡織機械
供應商：SUZHOU HUILONG TEXTILE MACHINERY CO., LTD.
攤位號碼：773
產品特色

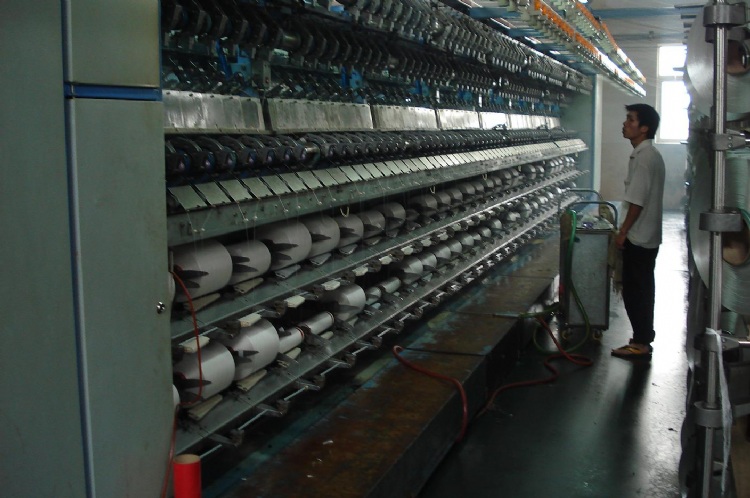

HLK-B Air Textured Machine is a new brand machine which designed by our company. It is use pressure air jets to process the filament and made the filament fluffy and has some feature of stable fiber. Then use different deformation process to made the products fells and looks like wool，cotton，linen and silk.
This machine can made the(FDY) such as polyester， polypropylene ，nylon into ATY after wetting ，deformation and oiling. The ATY yarns are used for looms machine.
產品規格
Specification
Method of the operation: Double sides’ construction
Section: 8 sections (16 spindles for one section)
Spindle Number: 128 spindles
Fiber Density: 75-1500 Dtex
Output Speed : 150-600 m/min
Over Feeding Ratio: 10%-30%
Size of the Cone: Φ59×Φ69×290 mm
Cone Winding Size: Φ250×250mm
Cone Winding Weight: 4.5kg
Main transmission power: 37.2 KW
Rated pressure of Air pressure: 0.7∼1.0 MPa
Machine Dimension (without the creel): 13820*1500*2300(mm)
Machine Dimension (including the creel): 13820*6000*2300(mm)
