產品型號：DM-H-07

產品分類：紡織染整成衣暨縫製機械 / 紡織染整機械 / 縫紉機

攤位號碼：780

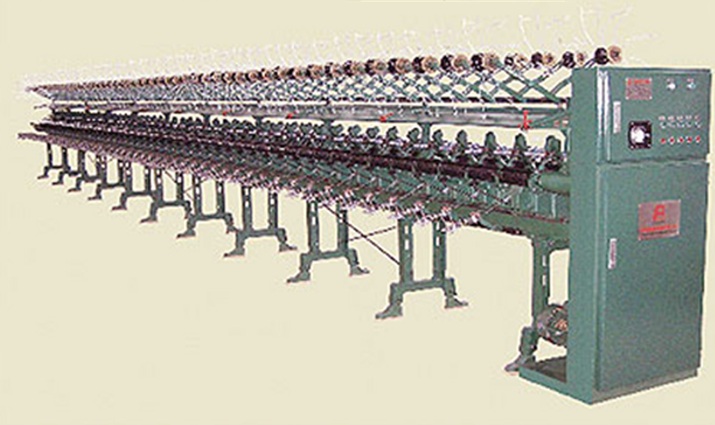

DM-H-07 Hank to Cone winders:

The machine is used to rolling yarn in the shape of cone type, for knitting, combining yarn, and warping.

Main Parameters:

导纱形式Gauze forming	槽筒式Trough tube forming
锭距Spindle pitch	254mm
每台锭数No. of spindle	40 60 80 100 120 etc.
导纱动程Guide travel	152 mm
络纱速度Winding speed	130-180m/min
槽筒规格Drum specification	胶木：直径82毫米（用户选用）二圈半Bakelite: diameter 82 mm , two and half cycles
	金属槽筒Metal grooved drum
断纱自停装置Auto-stop device	每锭一套,单独作用 One set per spindle , acts independently
清纱装置Yarn cleaning device	刀片或电子清纱器Blade or electrical cleaning device
成筒尺寸Forming size	200×152mm
筒锭尺寸Bobbin size	木管Wooden : 5º 57’
	纸管Paper : 5º 57’ and 9º15’
机器外形尺寸 Dimension (mm)	锭数Spindle no.	40	60	80	100
	长度Length	5951	8491	11031	13571
	宽度Width 1400
	高度Height 1525
机器重量Weight (ton)	锭数Spindle no.	40	60	80	100
	重量Weight	2.19	2.79	3.61	4.6
电动机Motor	主电机两只，1.1千瓦，辅电机一只，0.18千瓦; Two main motor 1.1 kw /960rpm, 1 assistant motor 0.18 kw /960rpm
电控箱Electrical control box	防叠控制间歇次数可调范围The range of adjusting anti-folding control: 20-40 times/min
