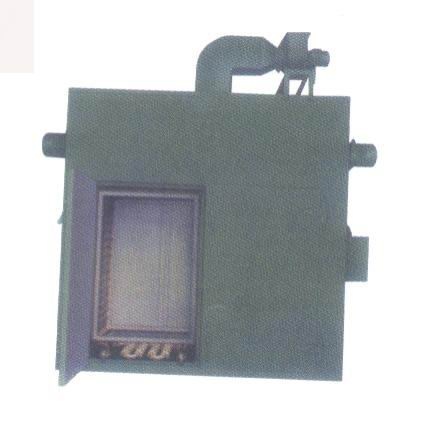

Dryer
產品型號：DM-4D
產品分類：紡織染整成衣暨縫製機械 / 紡織染整機械 / 烘乾機
供應商：NINGBO DINGMING MACHINERY MANUFACTURING CO., LTD.
攤位號碼：780
產品特色
Function and Main Technical Characteristic
This machine is for the drying process of all kinds of fiber cheese after being dyed.
1. Short drying time: about 2.5 hours each batch, usually 5 tons per day.
2. Big evaporative power: water evaporated in each drying room at least 110 kilograms per hour.
3. Low energy cost: suitable structure, with energy recovery device and good thermal insulation, electrical machine with frequency control of motor speed, automatic vapor proportioning adjustment, both electrical and thermal energy are used to maximum extent, and so is the cost of cheese drying.
4. A high degree of automation: controlled by computer program and manual mode is also available. The computer programs include 20 procedures in two modes named A and B, which apply to different kinds of yarn and processes. Temperature, the air pressure and air flow are controlled by the predetermined computer programs automatically. Sound alarm and emergency stop are equipped to get controllability and selectivity.
5. High degree cleansing of air filtration: the machine adopts multiple filtration in case of the pollution to cheese from the dust and lint etc., ensuring that the air in the drying room completely reaches standard.
產品規格
|
型号TYPE
|
DM-4D-30 |
DM-4D-55 |
DM-4D*75 |
|||
|
可烘筒子纱（只） Drying Capacity(cones) |
448 |
630 |
896 |
|||
|
蒸发能力（kg/台.时） Evaporative Power (kg/set per hr.) |
90 |
135 |
200 |
|||
|
烘干时间(时) Drying Time(hr) |
2.5 |
2.5 |
2.5 |
|||
|
生产能力（kg/台.时） Production (kg/set per hr.) |
3000 |
5000 |
8000 |
|||
|
能源 消耗 Consume |
电Kwh/吨纱 Power (Kwh/ton yarn) |
<175 |
<175 |
<175 |
||
|
蒸汽kg/吨纱 Steam(kg/ton yarn) |
<900 |
<900 |
<900 |
|||
|
控制方式 Control Way |
电脑控制，20套程序，另加手动控制。 Computer control with 20set procedure; Manual control |
|||||
|
安装尺寸(MM) Assemble Dimension |
见外形尺寸图（附说明书） See the operation manual |
|||||
|
动力配置 Dynamic Power |
30kw |
55kw |
75kw |
|||
|
热力配置 Heating Pressure |
蒸汽压力 Steam pressure |
>0.4Mpa |
>0.4Mpa |
>0.4Mpa |
||
|
供汽能力 Steam Supply |
>200kg/h |
>250kg/h |
>375kg/h |
|||
