High speed cone winder

Enlarge

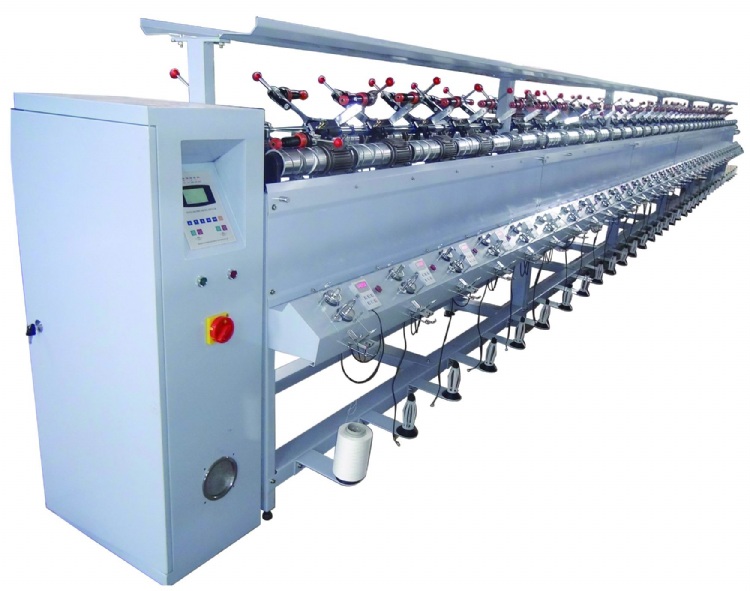

High speed cone winder

產品型號：DM-0702

產品分類：紡織染整成衣暨縫製機械 / 紡織染整機械 / 縫紉機

供應商：NINGBO DINGMING MACHINERY MANUFACTURING CO., LTD.

攤位號碼：780

產品特色

Tight cone to cone winding machine:

Tight cone to cone winding machine, soft cone winder.

FEATURES:

1. Perfect Tight package edge and density uniformity.

2. Winding Transmission: every spindle is driven by a motor (90W) individually which is powered by an inverter.

3. Winding speed and density: 800m/min for cotton yarn and 600m/min for polyester yarn. The density is 0.2-0.4g/cm3 (depends on yarn types);

4. Electronic yarn breaks auto-stop function;

5. Anti-hard-edge function and electrical wobble frequency ant patterning function;

6. Package diameter and traverse: diameter ≤φ200mm.The traverse is 152mm.

7. Yarn length counting for per spindle.

8. Advance touch screen operating system.

9. Double-sided 72 spindle/set.

10. Dimension:13724mm×1240mm×2058mm include clean-out device.

We could make special type according to the customer’s request!<./p>

產品規格

Bobbin type 纱管尺寸	6” (170mm)
Take-up package 成型筒子	Tube Bobbin (0°) / Cone 4°20, 5°57, 9°15 平行管 (0°) / 宝塔管 4°20, 5°57, 9°15
Layout 结构	Double-side, can be 12-96 spindles; 双面，12-96锭
Speed 速度	Max 1000m/min, can be adjusted by inverter 最大1000米/分，速度可调
Power Consumption 功率	90W/spindle；90W/锭
Yarn tension and waxing device 张力和上腊装置	Every spindle has a yarn tension and waxing device 每锭都配有张力和上腊装置
Auto Stop Device 自停装置	Each spindle install auto stop device 每锭都配有自停装置
Dimensions 机器尺寸	L 13700 x W 1050 x H 1650 mm
