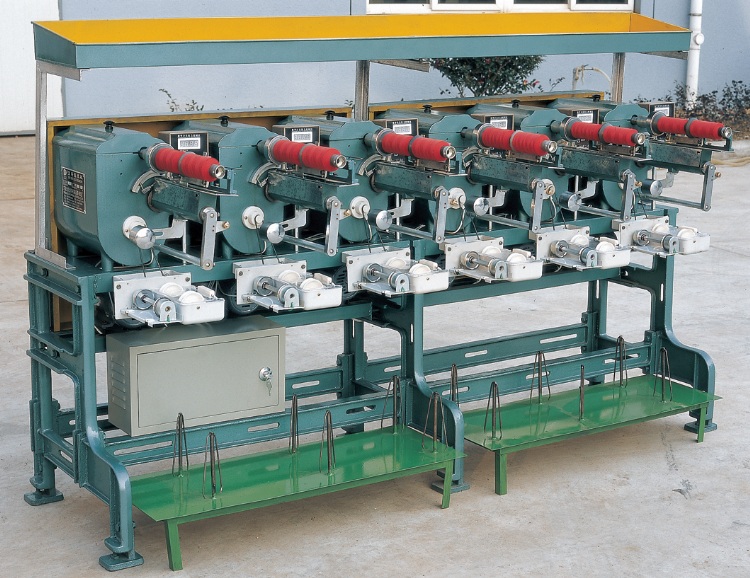

Horn type thread winding machines
產品型號：CL-2C
產品分類：紡織染整成衣暨縫製機械 / 紡織染整機械 / 縫紉機
供應商：NINGBO DINGMING MACHINERY MANUFACTURING CO., LTD.
攤位號碼：780
產品特色
CL-2C horn type thread winding machines are specially designed to wind polyester sewing thread , rayon embroidery thread , viscose embroidery thread , nylon thread , DTY ,FDY, PP thread etc onto standard specifications of plastic cones .
This machine are immensely popular with good features of reliable quality , easy operation , wide use , and nice pattern of final thread reels .
Detailed Technical Parameter :
* it is equipped with digital counter & tension force controller
* it is equipped with auto-stop upon thread breaking device
* it is equipped with silicone oiling device
* it is equipped auto-memory upon power disconnecting function
* it is equipped with hopper ,belt housing and thread frame.
產品規格
|
main technical parameter
|
4 inches
|
5 inches
|
6 inches
|
|
spindles of per machine
|
6 spindles
|
6 spindles
|
6 spindles
|
|
reels of per spindle
|
Two
|
Two
|
Two
|
|
motor
|
0.18kw , 220v/380v/440v , 50HZ/60HZ , 1400 RPM
|
||
|
Net weight
|
550kg
|
||
|
Gross weight
|
650KG
|
||
|
dimension
|
2.25×0.80×1.15m
|
||
|
overall dimension
|
2.35×0.90×1.25m
|
||
|
Winding yarn
|
Spun polyester yarn , sewing thread , cotton thread, PP thread etc.
|
||
|
Special specifications of plastic cones or paper cones and different counts of thread are available according to customers’samples
|
|||
