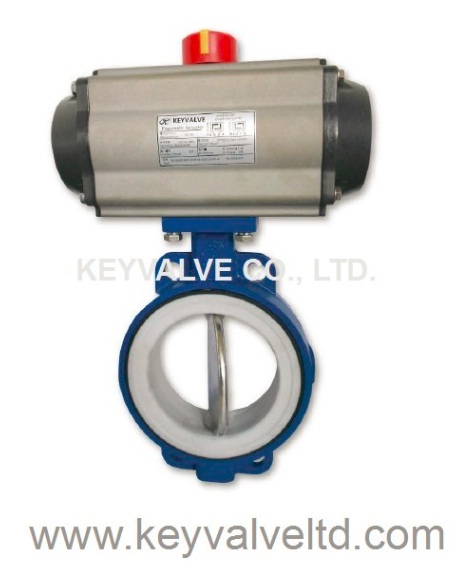

KEYVALVE KV-28 Butterfly Valve
產品型號：PTFE lined Butterfly Valve
產品分類：零組件配件 / 機械零件（零組件） / 機械軸封及其零件
攤位號碼：1061
產品特色
Features:
PTFE lined EPDM valve seat:
- Made of high engineered composite materials gives excellent corrosion and high temperature resistance.
- Provides complete isolation of line media from coming contact with the stem or valve body.
- Replaceable seat design allows convenient and economical replacement in the field.
Integral Flange Seal:
- Molded into the edge of the seat eliminates the requirement of flange gaskets and makes installation quick and easy.
Bearings:
- Dry-type, heavy duty upper and lower bearings provide strong stem support and perfectly isolate the stem from valve body to prevent wear and seizing.
One-Piece Integrated Disc-Stem:
- Large-bore and precision profile disc provides high flow rate (Kv) and a bubble tight shut-off at minimum torgue.
- Offers a nearly linear flow characteristic.
- Ensure dependability and positive disc positioning.
Short Face-to-Face Dimension:
- Allows easy installation and requires minimum space.
產品規格
| Connection | Wafer Type |
| Flange Standard | GB, DIN, ANSI, JIS |
| Size Range | DN50 - DN500 |
| Working Temperature |
PTFE lined EPDM (-20oC to +150oC) HT-EPDM (-20oC to +150oC) Buna-N (-20oC to +85oC) |
