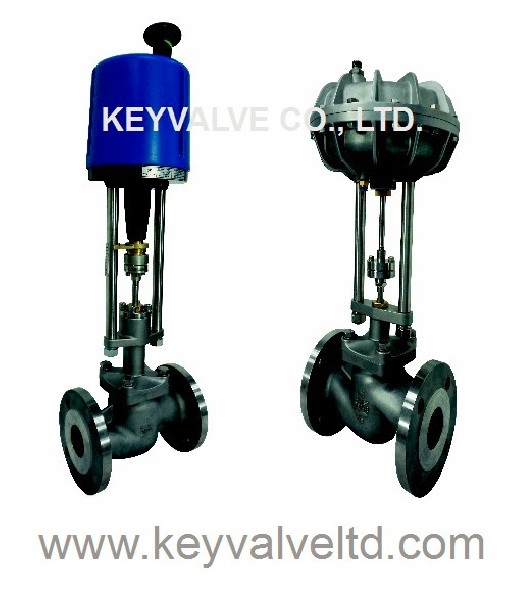

KEYVALVE KP-28 Pneumatic Control Valve / KEYVALVE KT-28 Electric Control Valve
產品型號：KP-28 Two Way Valve / KP-38 Three Way Valve
產品分類：零組件配件 / 金屬製品 / 不鏽鋼
攤位號碼：1061
產品特色
<b>AREAS OF APPLICATION:</b>
Ideal for Steam and Hot Oil applications in textile dyeing and finishing.
<b>FEATURES:</b>
- Features with regulating and shutoff functions, with options of electric and pneumatic actuators for different application requirements.
-Compact structure, high flow rate, minimal flow resistance, low pressure drop and equal-percentage flow characteristic provide precise modulating control.
-Two perforated cages design (based on unique drilled hole technology) is efficiently to create lower velocity flow stream, providing high performance in noise abatement and preventing formation of flashing and cavitation, proven to extend service life for the valve and heat exchanger.
-Constructed of hard alloy, the hardened surfaces of valve plug and seat ring provide excellent control on leak seal and eliminate the potential damaging effects by debris or impurities contained inside the medium, resulting in longer valve life.
-Unique steam seal design requires no maintenance and maintains reliable leak-tight seal for extended cycle life.
產品規格
| Nominal Diameter | DN 15 - DN150 |
| Nominal Pressure | PN10 - PN100 |
| Maximum Working Temperature | 400oC |
| Valve Functions | Shut-off / Modulating Control |
| Body Materials* |
Ductile Iron QT-450-10 Carbon Steel WCB Stainless Steel CF8, CF8M |
| Supply Pressure (for Pneumatic Actuator) | 5 - 6 Bar |
| Power Requirement (for Electric Actuator) |
One Phase 24V / 115V / 220V 50Hz / 60 Hz |
| Flange Standard | GB, DIN, ANSI |
* Other body materials are avaliable, please consult factory for details.
Two Way and Three Way control valve are avaliable.
