雷弗BQ80S 微流量蠕动泵

放大圖片

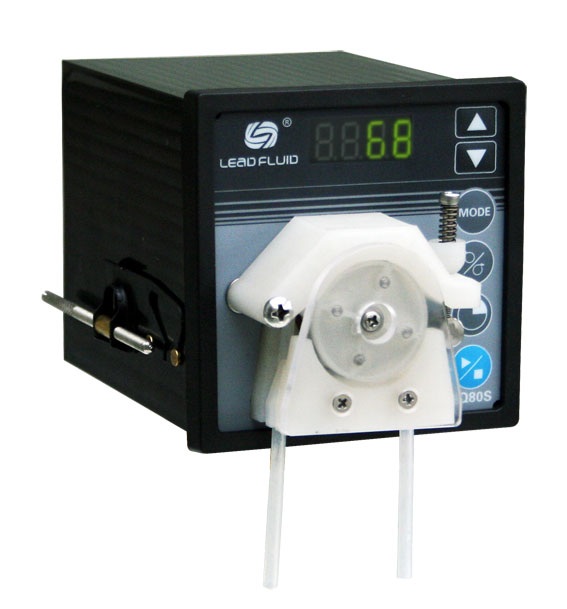

雷弗BQ80S 微流量蠕动泵

產品型號：雷弗 BQ80S 蠕动泵

產品分類：自動化設備/產業機械 / 化工機械 / 分離機與篩選機

立即線上詢問

產品特色

1.Variable speed peristaltic pump, simple operation, small size, easy installation, suitable for ancillary equipment and laboratories;
2.Built-in Pharmed BPT tubing whose working life is up to 12000hours under continuously running.
3.Reversible direction, start/stop, adjust speed and full speed, state memory (power-down memory);
4.The LED indicator display the internal ,external control mode .
5.Mask keypad operation.
6.Easy dispensing function ,it realizes the repeat timing quantitative dispensing .
7.Plastic housing ,adopts embedded design ,also can work on the desktop separately.
8.Can input the electrical level 5V,12V OR 24V.
9.RS485 interface, MODBUS communication protocol .
For pump head: FZ10,DW
Flow range: 0.005 ~ 64ml / min

產品規格

Technical parameters :

For pump head: FZ10.,DW10-1.DW10-2,DW10-3,DW15-1
Flow range: 0.005 ~ 64ml / min
:Speed range: 0.1 ~ 50 rpm Speed resolution: 0.1 rpm, with accuracy 0.5% Display: 3 LED digital speed display Consumption ratio: less than 8W Working Environment Temperature: 0 ~ 40 centigrade. Relative humidity <80% Dimensions: (L * W * H) 112mm * 96mm * 96mm Weight: 0.7kg

External control functions: External control start and stop, external control orientation, Isolated, TTL level input; 0-5V/10V, 4-20mA, 0-10KHz speed control input; Support RS485 bus, MODBUS communication protocol.

Drive type	Pump head	Channel number	Tubing（mm）	One channel flow rate （ml/min）
BQ80S	FZ10	1	Wall 0.8～1，ID≤3.17	0.05～40
	DW10-1	1	Wall 0.8～1，ID0.5～3.17	0.005～32
	DW10-2	2	Wall 0.8～1，ID0.5～2.54	0.005～19
	DW10-3	3	Wall 0.8～1，ID0.5～3.17	0.005～32
	DW15-1	1	13#14#19#16#25#	0.005～64
