China Highest Speed Glassfiber PPR Pipe Making Machine
產品型號:Glassfiber PPR Pipe Making Machine
產品分類:自動化設備/產業機械 / 鋼管製造機 / 切管機
產品特色

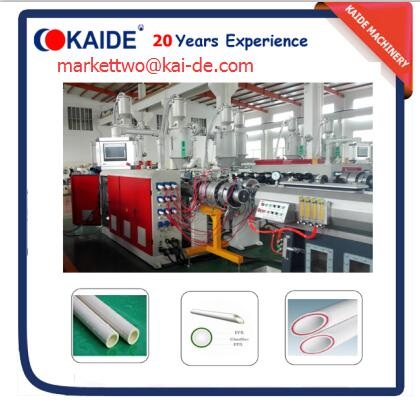

High Speed Glassfiber PPR Composite Pipe Production Line
The glassfiber ppr pipe making machine adopts the specialized high efficient wear-resistant extruderfor glass fiber reinforced plastic material, which ensures high speed extrusion and guarantee the long service life of extruder.
產品規格
High Speed Glassfiber PPR Composite Pipe Production Line
The glassfiber ppr pipe making machine adopts the specialized high efficient wear-resistant extruderfor glass fiber reinforced plastic material, which ensures high speed extrusion and guarantee the long service life of extruder.
Line Model | Screw Diameter | L/D | Production Scope | Production Speed | Nominal Power |
SJ-75 | j60/65mm | 36/33:1 | j20-63mm | 30m/min | 258KW |
SJ-60 | I60/65mm | 36/33:1 | j20-63mm | 20m/min | 165KW |
SJ-65 | j65/45mm | 33:01:00 | j20-63mm | 15m/min | 119KW |
Gravimeter System
(1 )High precise Gravimeter control system of is applied in this glassfiber PPR pipe production line.
(2) It is used for measuring & calculating and precise control of pipe weight permeter and its extrusion output, to realize the constancy of pipe weight.
(3) The application of this system can shorten the start-up time, improve the produced pipe quality, and save raw material.
Co-Extrusion Die Head
(1) Patented speciallydesigned adjustable co-extrusion die head, can ensure even thickness of threelayers,
(2) Each layer thicknesscan be adjusted freely; no need to adjust the extruder’s rotating speed.
Haul-off machine
(1) The haul-off machine adopts structure of high speed multi-group roller clamping type.
(2) Completely overcomes the vibration & skip problems in the traditional mode, ensuring high-speed stable pulling.
PLC Control System
(1) The three layers glassiber ppr pipe machinery adopts original imported new generation PLC control system.
(2) Multi-point closed-loop control system, which ensure the high speed synchronous control and reliable operating of the whole production line.
