產品規格

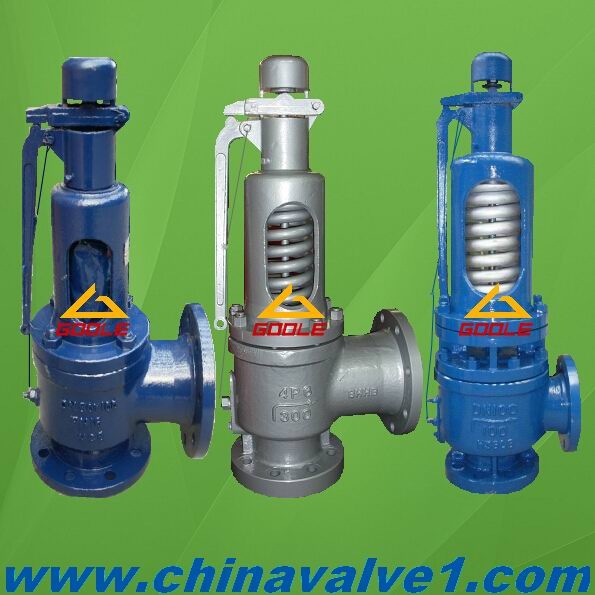

900 DIN Spring loaded Pressure Safety Valve

DIN Standard Safety Valve Features:

Safety valves were first used on steam boilers during the industrial revolution. Early boilers without them were prone to accidental Explosion.
Safety valves also evolved to protect equipment such as pressure vessel (fired or not) and heat exchangers. Safety valve term should be limited to compressible fluid application (gas, vapor, steam).

The two general types of protection encountered in industry are thermal protection and flow protection.

For liquid-packed vessels, thermal relief valves are generally characterized by the relatively small size of the safety valve necessary to provide protection from excess pressure caused by thermal expansion. In this case a small valve is adequate because most liquids are nearly incompressible, and so a relatively small amount of fluid discharged through the relief valve will produce a substantial reduction in pressure.

DIN Standard Safety Valve Specification

These safety valves are used as Extra Pressure Protection Device for the equipment and pipeline of the steam, ect. The working temperature with Carbon Material Type are less than 425℃ and with WC6 Material type are less than 500℃ and WC9 Material Type are less than 550℃.

A48SB High Temperature and High Pressure Safety Valve Material

A full lift safety valve is one in which the disc lifts sufficiently, so that the curtain area no longer influences the discharge area. The discharge area, and therefore the capacity of the valve are subsequently determined by the bore area. This occurs when the disc lifts a distance of at least a quarter of the bore diameter. A full lift conventional safety valve is often the best choice for general steam applications.

Full lift safety valve opening height is more than one fourth times of the flow diameter. it has an advantage of discharging greatly .

APPLICATION:

A48 Type Spring Loaded Full Lift Safety Valve is applicable as the pressure protecting device in the equipment or pipelines for steam, air,etc.,  which the working medium is  ≤350℃.

safety valve, pressure relief valve, safety relief valve, safety valve temperature, high temperature safety valve, high pressure safety valve.

1.900 Series DIN Spring loaded Pressure Safety Valve

2.A46F/H/Y Pilot-operated Pressure Relief valve (A46 Safety Valve)

3.Double Port High Lift Safety Valve

4.A48Spring loaded ful lift safety valve

5.A48SB High temperature and high pressure safety valve

6.A37/38/43Twin spring type safety valve

7.A47Closed spring loaded low lift type high pressure safety valve

8.A44Spring loaded Full Lift safety valve

9.A42Closed spring loaded full lift type safety valve

10.A41Closed spring loaded low lift type high pressure safety valve

11.A27Spring loaded low lift type safety valve

12.A21 Spring loaded low lift external thread type safety valve

13.Impulse Safety Valve

Other Information:
Tel: + 86-577-57781015
Fax: +86-0577-67985602
Email:
1. goole4@goolevalve.com
2. fjxcathy1985@yeah.net
3. fjxcathy@hotmail.com

Website:

http://www.chinavalveworld.com/

http://www.goolevalve.com/

Skype:fjxcathy
Payment:T/T
Delivery:FOB
Origin:China
Minimum Order:1
Package: plywood case
