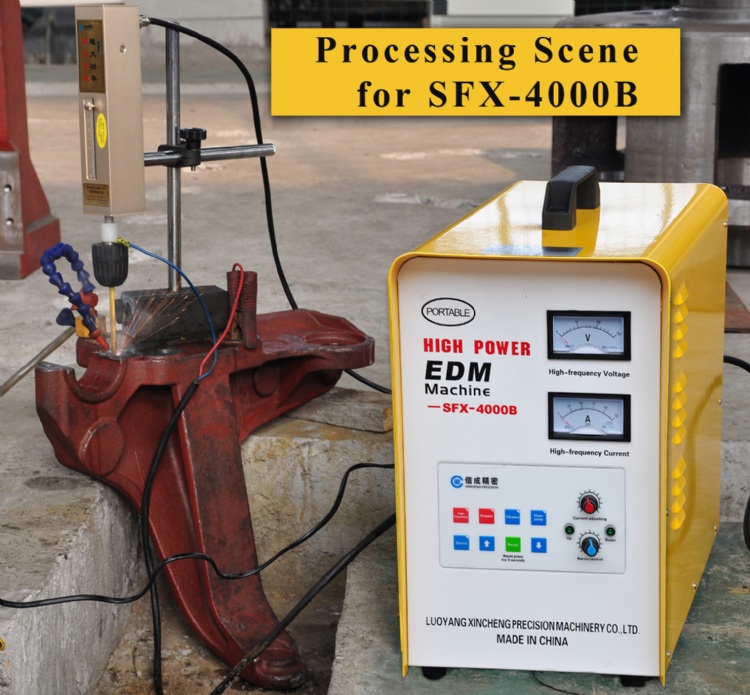

Small electric discharge machine tap remover
產品型號：SFX-4000B
產品分類：工具機產業機械 / 放電加工機 / 可程式控制放電加工機
產品特色
1.Small size, light weight, convenient to operating;
2.Electrolytic Corrosion principle, no damage to workpiece
3.Magnetic base, easily to attract on the workpiece
4.Cooling fan installed keep the machine contiinue working
5.Working head is separated, helpful for complex machining
6.Alarm automatically for preset depth.
7.Tap water as working liquid, moderate power consumption.
8.Wide processing range:broken taps and drills above φ3mm.
產品規格
Product Specification:
Name ----------------------- Tap remover SFX-4000B
Input Voltage (V)-------------- AC220V 50/ 60Hz
Secondary Output Voltage (V)--- 10-70
Electrode Diameter Range------- 2-24mm
Max Travel of working head (mm)- 70mm
Max Processing Speed(mm/ min)--- 2mm/min
Working Liquid ---------------- Tap water
Power Frequency --------------- 50Hz
Remove Taps Sizes(mm)----------- more than M2
Machine Size (L*W*H mm) -------- 420*220*370mm
Package size ------------------- 528*325*460mm
Net weight(KG) ---------------- 24KG
Gross weight ----------------- 26KG
Function------------------------ Remove broken taps, dreamers and screws
Protable edm processing case
Package:
Two layer of thick carton packaged, surrounded by foam filled to protact the machine, five straps tie up on the outer carton.
Delivery：
We usually arrange the goods within 72 hours after 100% advanced T/T deposit checked.
Shipment:
The shipment is usually International express DHL / FEDEX / TNT...etc
Application:
1.Fast removing broken depth,drills, screw without damage to the work-piece;
2.Processing non-precision holes and marking on metal materials such as hardened steel, hard alloy steel and copper.
Warranty:
First of all, the products will go through a thorough quality exam process to ensure that our devices won't have any glitch before delivery.
Secondly, the warranty period is usually around one year and during the period the period if there are any technical problems, we would repair them for free including the new parts that needed for repair.
PS: we would offer free repair only when the damages are caused by technical deficiencies of the product itself, not man made errors, namely, the damages were done by mishandling the machine.
